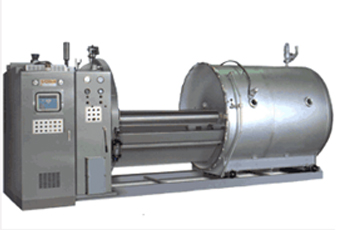

JIGGER DYEING MACHINE SIDJ H |
|
|
 |
|
Features
• 2-drivers method and vector invertor control enables driving of fabrics under configured speed and tension according to pre-configured program values to achieve high repeatability.
• Low tension operation minimizes wrinkles, slant twists and unlevel dyeing.
• High temperature, high pressure dyeing done at a low liquid ratio to protect the environment..
• Dyeing process of various fabrics including spandex, polyester, nylon, acrylic and T/C |
|
|
| |
  |
|
| Model |
SIDJ H 900 |
SIDJ H 1300 |
| Loading Capacity (mm) |
1,800 |
1,800 |
| Liquid (mm) |
900 |
1,100 |
| Electric Power (kW) |
13 |
13 |

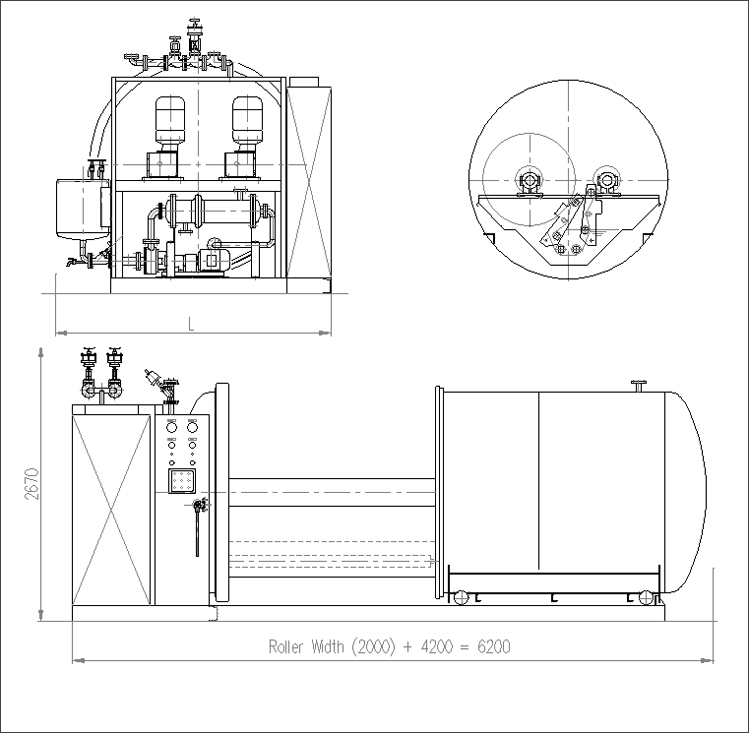

| Installed width (mm) |
6,200 |
6,200 |
| Length (mm) |
2,670 |
2,670 |
| Height (mm) |
2,670 |
2,670 |
| Max. operating temperature |
140℃ |
|
| Heating rate (Saturate Steam 0.7㎫) |
Approx. 20min (from20℃ to140℃) |
| Cooling rate (Cooling Water 0.1㎫, 15℃) |
Approx. 15min (fom140℃ to 80℃) |
|
|
| |
 |
 |
|
